Pipe Benders: The Most Efficient Way of Bending Pipes

Pipe benders are used to make light work of bending copper or steel pipes or tubes. They work by applying pressure on the pipe when it is wedges on to a curved die. There are different variations of pipe benders, from pipe bending springs to multi-handed pipe benders.

Table of Contents

1. What is a Multi-Hand Pipe Bender?
2. What is a Spring Pipe Bender?
3. How to Use a Multi-Hand Pipe Bender
4. How to Use an Internal or External Spring Pipe Bender

1. What is a Multi-Hand Pipe Bender?

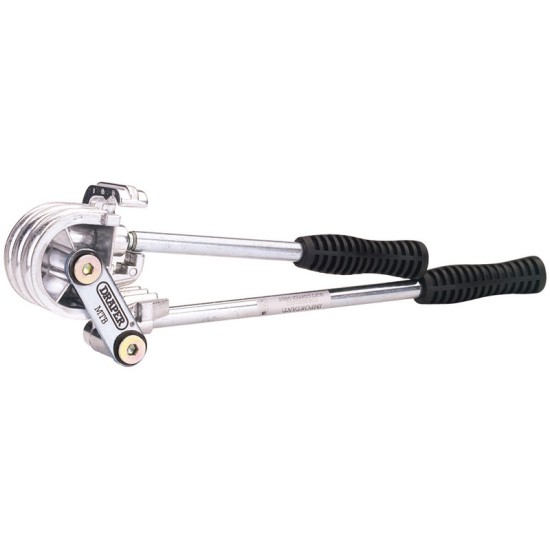

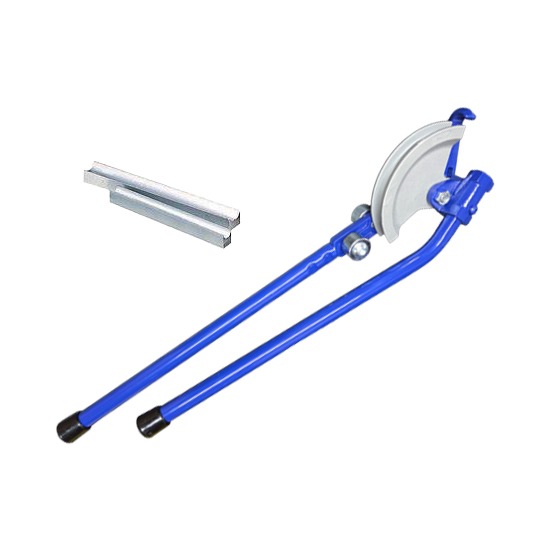

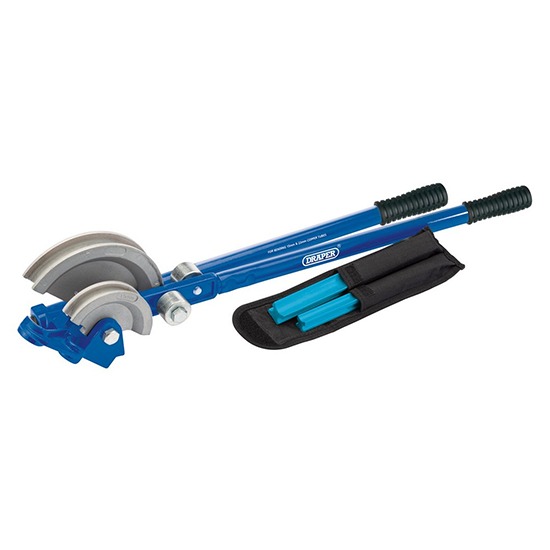

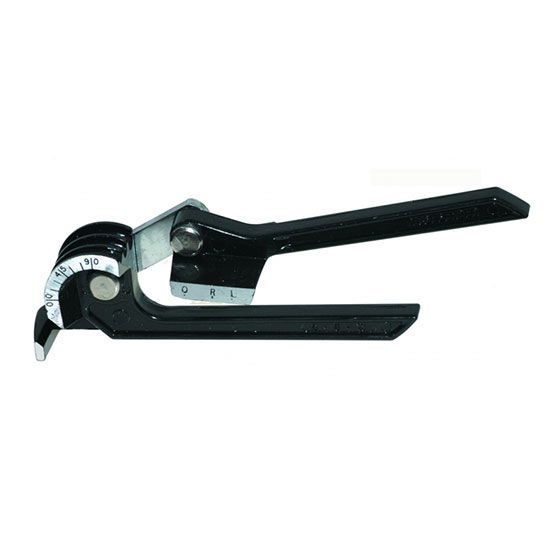

A multi-hand pipe bender has two handles that are used to apply pressure on to the pipe, to bend it over a die. A pipe is inserted into the tool, and lined up with the curved die, pressure is then applied to the pipe, curving it.

2. What is a Spring Pipe Bender?

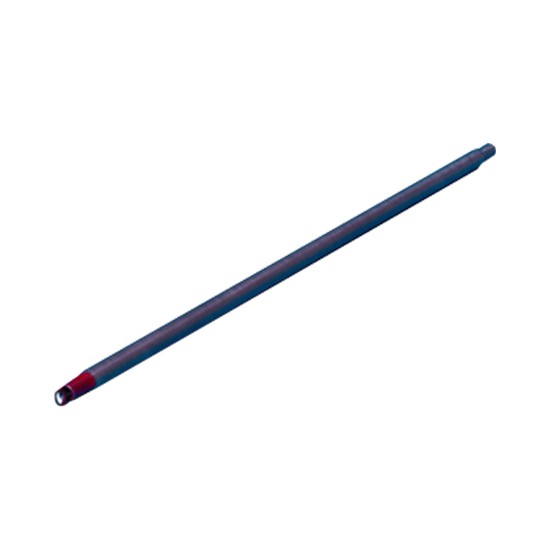

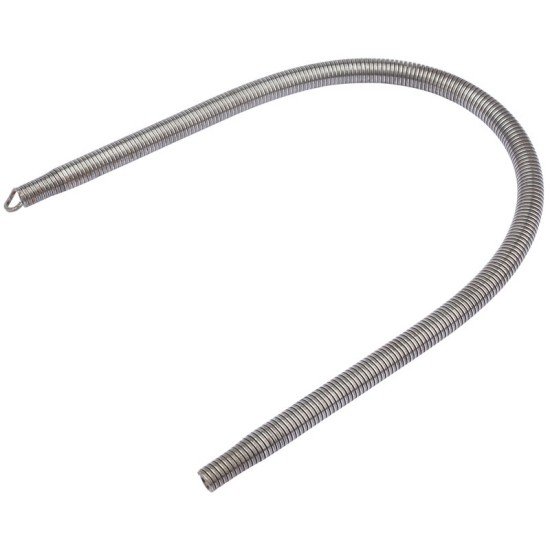

There are two types of spring pipe benders, internal and external. Internal springs are designed to be fed through the pipe to help prevent any breaks or kinks in the pipe. External springs are wrapped around the pipe, this helps support the pipe when applying pressure to it.

3. How to Use a Multi-Hand Pipe Bender

1. Prepare the Pipe - Ensure that the pipe is at the right length to be bent, and the edges of the pipe are deburred. Finally, mark the points where the pipe is to be bent
2. Prepare the Pipe Bender - Make sure the pipe is level in the bender and that the appropriate die has been selected, this will maintain the correct bending radius and prevent any kinks from appearing
3. Bend the Pipe - Once both pipe and bender have been prepared and lined up, begin to apply pressure until the pipe reaches the desired angle. It is recommended to over-bend by a couple of degrees to accommodate for minor spring-back
4. Check the Results - Once the pipe has been bent to the desired angle, it should be removed and the angle should be checked with a second angle tool, to further verify the results
5. Final Adjustments - If required, any final adjustments should be completed, for example, deburring an edge or adjusting the angle slightly
6. Connection Check - If possible, the connection between the pipe and the other pipe or object should be checked

4. How to Use an Internal or External Spring Pipe Bender

1. Prepare the Pipe - Prepare the Pipe: Ensure that the pipe is at the right length to be bent, and the edges of the pipe are deburred. Finally, mark the points where the pipe is to be bent
2. Prepare the Spring - Next, the spring should be applied to the pipe (either fed through the middle, or over the top). To make sure the spring is tight to the pipe, the end can be rotated to either tighten or loosen the spring
3. Find a Suitable Surface for Bending - A hard, curved surface should be used to bend the pipe sufficiently
4. Bend the Pipe - Once the preparation has been completed, the spring should be taken with both hands and bent around the surface to the desired angle
5. Check Results - After bending the pipe, the results should be checked to make sure it is at the correct angle
6. Fine Adjustments - Before the task is completed, the pipe should be checked for any further adjustments such as deburring and marking
